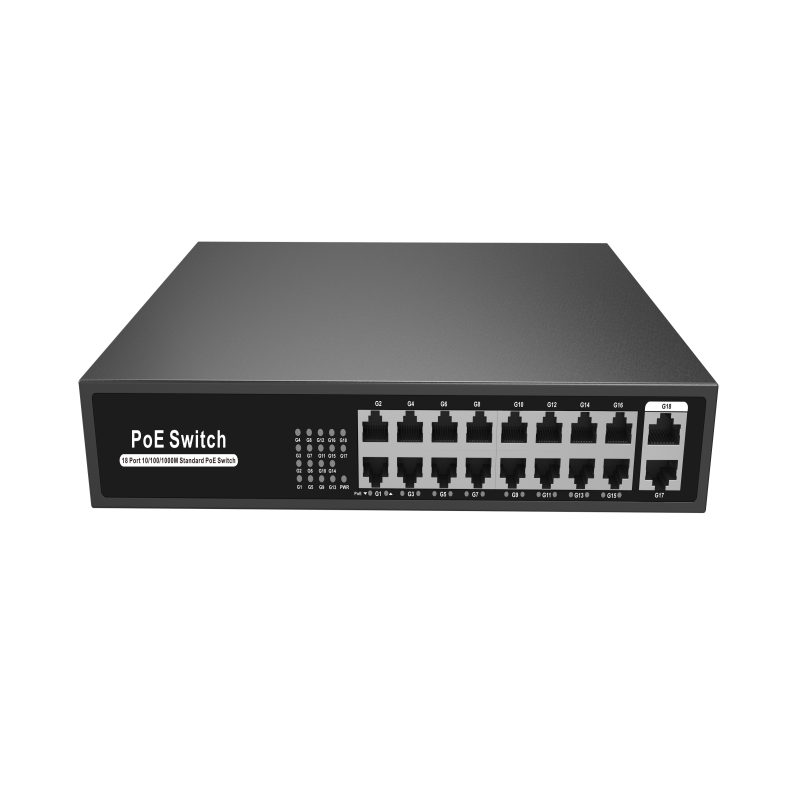

PoE Switch, 18-port Full Gigabit ,T2018-18GP
PoE Switch, 18-port Full Gigabit ,T2018-18GP
Couldn't load pickup availability
OVERVIEW
The T2018-18GP is a full gigabit unmanaged PoE switch independently developed by SCYTON. It has 18*10/100/1000Base-T PoE ports. Port 1-16 can supportt PoE+ power supply, and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy efficient network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
n Full gigabit port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provide Gigabit Ethernet ports and dual RJ45 ports uplink for flexible networking and meets the networking requirements of various scenarios.
n Smart PoE power supply
◇ 16*10/100/1000Base-T PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.
n Stable and reliable, easy to use
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ Low power consumption, galvanized steel casing, excellent heat dissipation to ensure the stable operation of the switch.
TECHNICAL SPECIFICATION
|
Model |
T2018-18GP |
T2018-18GP-250 |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
|
Ethernet Port |
Port 1-16 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
36Gbps (Non-blocking) |
|
|
Forwarding Rate@64byte |
26.78Mpps |
|
|
MAC |
2K |
|
|
Buffer Memory |
2M |
|
|
Jumbo Frame |
9.2k |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 16 |
|
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
|
Max Power Per Port |
30W, PoE+ |
|
|
Total PWR / Input Voltage |
160W/ (AC100-240V) |
250W/ (AC100-240V) |
|
Power Consumption |
Standby <13W, Full load <160W |
Standby <13W, Full load <250W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 3.0A |
Built-in power supply, AC100~240V 50-60Hz, 4.1A |
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
270*181*44.5mm |
|
|
Net /Gross Weight |
1.4kg / 1.9kg |
1.6kg / 2.0kg |
|
Installation |
Desktop, 19 inch 1U cabinet |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
DIMENSION
APPLICATION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
T2018-18GP |
Unmanaged PoE switch with 16*10/100/1000M RJ45 ports and 2*10/100/1000M RJ45 ports. Port 1-16 support PoE+ power supply. Built-in power supply |
160W |
|
T2018-18GP-250 |
250W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
18-port full gigabit PoE switch |
1 |
SET |
|
|
AC Power Line |
1 |
PC |
|
|
Hardware Mounting Kit |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
