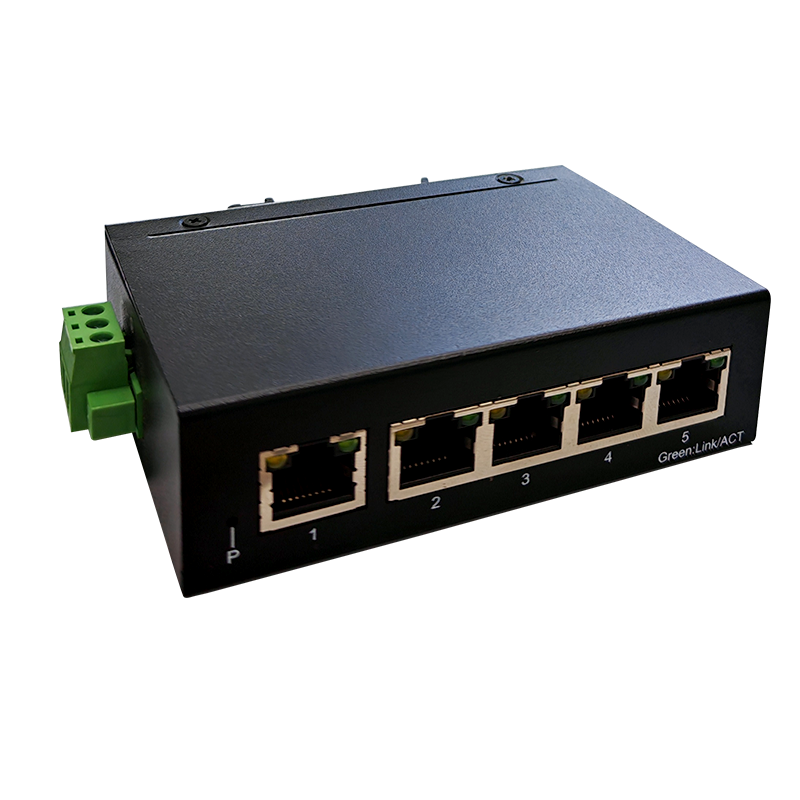

5-port industrial-grade Ethernet switch T1005A-5F
5-port industrial-grade Ethernet switch T1005A-5F
Couldn't load pickup availability
Product Features：
Ø 5 Ethernet port 10/100 MBbit/s, autonegotiantion
Ø Support IEEE802.3, IEEE802.3u, IEEE802.3x standard
Ø DC10-58V wide voltage dual power supply redundant backup, with anti-reverse connection protection function
Ø Passed the EMC industry level 4 standard, can effectively resist lightning strikes below 8KV, and anti-static up to 8-15KV
Ø Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C
Ø Corrugated high-strength alloy shell, DIN rail type installation
Ø Passed inspection of the FCC, CE, RoHS test certifications
|
Specification Model: SCYT-1005A |
|
|
Protocol Standard |
IEEE802.3 、IEEE802.3u、IEEE802.3x |
|
Switching Performance |
Packet Forwarding Rate: 0.744Mpps |
|
Transmission Method: Store and Forward |
|
|
Buffer: 512K |
|
|
bandwidth: 1.0Gbps |
|
|
Latency: <5μs |
|
|
MAC Address Table |
1K |
|
Port Rate |
5X 10/100Base-TX，RJ45 port auto flow control |
|
Full-Duplex & Half-Duplex mode and MDI/MDI-X auto detect |
|
|
Transmission Distance |
Twisted-pair: 100M |
|
Indicator Lamp |
POWER indicator: PWR （Blue) |
|
Interface indicator: Light indicator-Link, Flashing indicator-Act（Green） |
|
|
Power Supply |
Input voltage: DC10-58V double power supply back-up |
|
Access terminal: 3-core 5.08mm pitch plug-in terminal |
|
|
Toal Power: <3W |
|
|
Overload Protection: support |
|
|
Reverse Connection Protection: support |
|
|
Redundancy Protection: support |
|
|
Mechanical Structure |
Shell: Metal Shell |
|
Cooling Method: no fan, natural cooling |
|
|
IP Grade：IP40 |
|
|
Dimension：103mm * 70mm * 30mm |
|
|
Weight: 270g around |
|
|
Installation Method: DIN rail / wall mounted |
|
|
Environment |
Operating Temperature: -40~85℃ |
|
Storage Temperature: -40~85℃ |
|
|
Relative Humidity: 5%~95%（non-condensing） |
|
|
Accessories |
Power supply terminal, certification, instruction manual, power adapter(optional) |
|
Warranty |
MTBF> 1000000h |
|
Warranty: 5 years |
|
|
Certification |
FCC、CE、RoHS |
|
Industry Standard |
EMI：FCC CFR47 Part 15, EN55022/CISPR22, Class A |
|
IEC61000-4-2(ESD) ±8kV(contact), ±15kV(air) |
|
|
IEC61000-4-3(RS) 10V/m(80MHz-2GHz) |
|
|
IEC61000-4-4(EFT) Power Port: ±4kV；Data Port:±2kV |
|
|
IEC61000-4-5(Surge) Power Port: ±2kV/DM,±4kV/CM; Data Port: ±2kV |
|
|
IEC61000-4-6(CS) 3V(10kHz-150kHz); 10V(150kHz-80MHz) |
|
|
IEC60068-2-6 (vibration) |
|
|
IEC60068-2-27 (impact) |
|
|
IEC60068-2-32 (drop) |
|
Product size drawing：
The order information：
|
model |
The product description |
unit |
|
T1005A-5F |
5X 10/100M BASE-TX adaptive electrical ports |
PCS |
|
|
|
