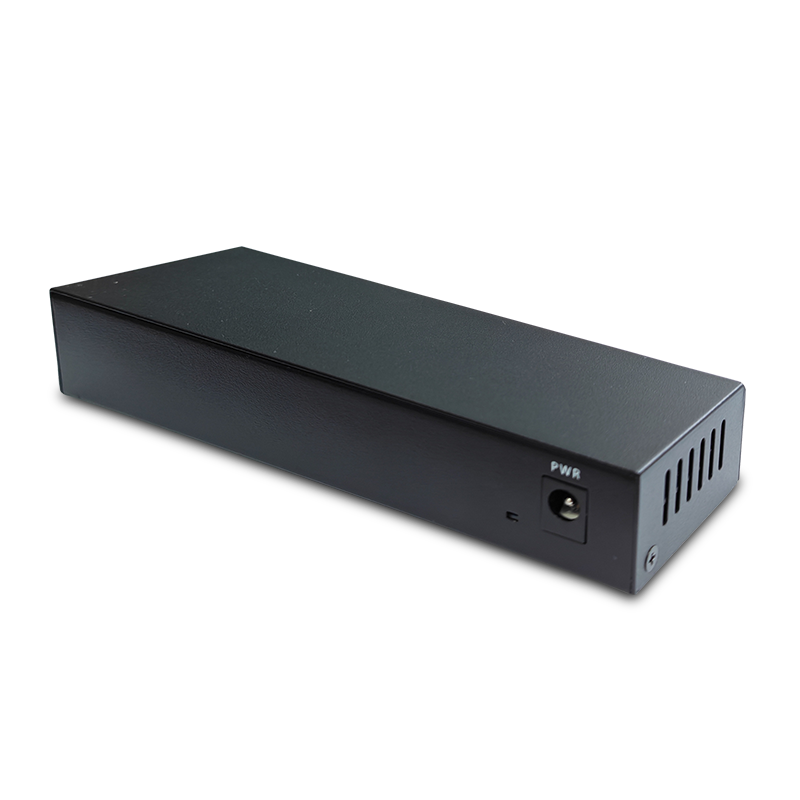

8-Port Ethernet Switch T1008C-8F
8-Port Ethernet Switch T1008C-8F
Couldn't load pickup availability
Product specification：
|
Protocol Standard |
IEEE802.3 、IEEE802.3u、IEEE802.3x、IEEE802.3az |
|
Switching Performance |
Packet Forwarding Rate: 1.19Mpps |
|
Transmission Method: Store and Forward |
|
|
Buffer: 512K |
|
|
bandwidth: 1Gbps |
|
|
Latency: <5μs |
|
|
MAC Address Table |
2K |
|
Port Rate |
8X 10/100Base-TX，RJ45 port auto flow control |
|
Full-Duplex & Half-Duplex mode and MDI/MDI-X auto detect |
|
|
Transmission Distance |
Twisted-pair: 100M |
|
Indicator Lamp |
POWER indicator: PWR (Red) |
|
Interface indicator: Light indicator-Link, Flashing indicator-Act（Green） |
|
|
Power Supply |
Input voltage: DC5V 2A |
|
Toal Power: <3W |
|
|
Mechanical Structure |
Shell: Metal Shell |
|
Cooling Method: natural cooling |
|
|
IP Grade：IP40 |
|
|
Dimension：140mm * 48mm * 25mm |
|
|
Weight: 150g around |
|
|
Installation Method: wall mounted |
|
|
Environment |
Operating Temperature: -20~70℃ |
|
Storage Temperature: -40~85℃ |
|
|
Relative Humidity: 5%~95%（non-condensing） |
|
|
Accessories |
Power supply terminal, certification, instruction manual, power adapter(optional) |
|
Warranty |
MTBF> 1000000h |
|
Warranty: 1 years |
The order information：
|
model |
The product description |
unit |
|
T1008C-8F |
8* 10/100M BASE-TX adaptive electrical ports |
PCS |
|
|
|
