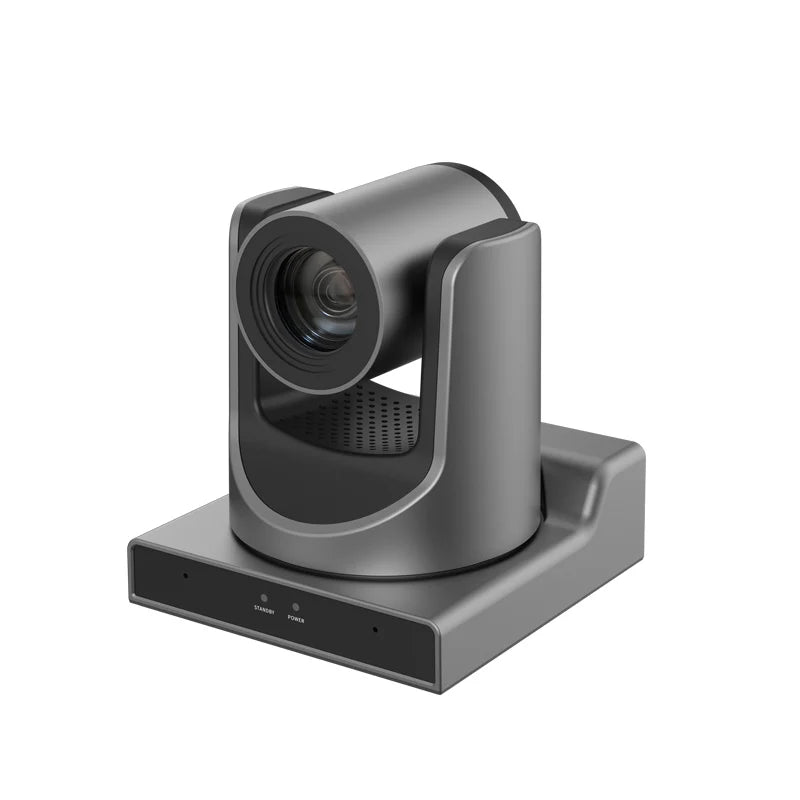

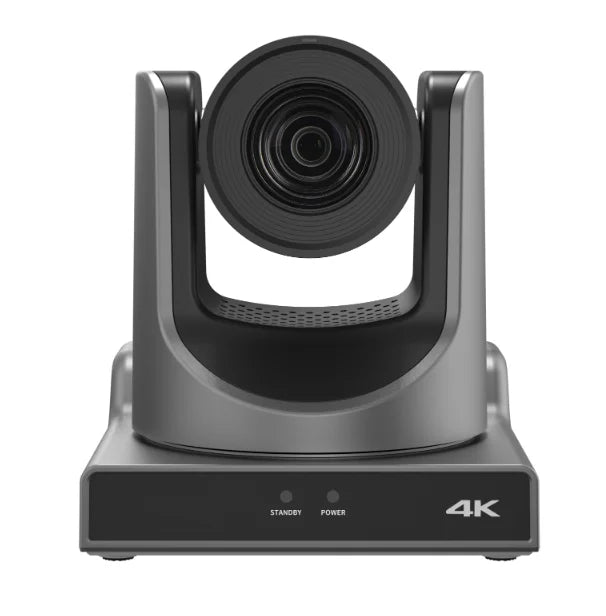

SMTAV AI Tracking NDI SDI 4K PTZ Camera 20X Optical Zoom 4Kp60 UHD Video Conference Camera HDMI 3g-sdi USB LAN Support POE
SMTAV AI Tracking NDI SDI 4K PTZ Camera 20X Optical Zoom 4Kp60 UHD Video Conference Camera HDMI 3g-sdi USB LAN Support POE
Couldn't load pickup availability
● 4K UHD
The new generation of Sony 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
● 20x optical zoom
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20 times optical zoom, and the maximum field angle is 60 °
● HDMI2. 0
Support hdmi2 0 interface, which can directly output 4kp60 uncompressed digital video.
● Low illumination
The new CMOS image sensor with ultra-high signal noise ratio can effectively reduce the image noise under low illumination. The application of 3D noise reduction algorithm can greatly reduce the image noise. Even under ultra-low illumination, the picture remains clean and clear, and the image signal-to-noise ratio is more than 55dB.
● Rich and perfect interfaces
Support hdmi2 0 HD output, equipped with 3g-sdi interface, 3G-SDI effective transmission range up to 150 m (1080p30). HDMI or 3g-sdi, USB and LAN can output 3 HD digital signals at the same time.
● Remote control
Multiple control modes, RS232, RS485, network and USB can be used to control the camera.
| Camera | |
| Video System |
HDMI：4K@60fps,4K@59.94fps, 4K@50fps,4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,1080P@59.94fps,1080I@59.94fps, 1080P@29.97fps, 720P@60fps,720P@59.94fps. 3G-SDI:1080p/60, 1080p/50, 1080p/30, 1080p/29.97, 1080p/59.94, 1080p/25; 1080i/60, 1080i/50, 1080i/59.94fps; 720p/60, 720p/59.94; |
| Sensor | 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels |
| Scanning Mode | Progressive scanning |
| Lens | 20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Automatic, indoor, outdoor, one touch, manual，VAR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 3D digital noise reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 60° ~ 3.5° |
| Horizontal Angle of View | 35.7° ~ 2.0° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V Flip | Supported |
| Image Freeze | Supported |
| PoE | Supported |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| USB Featured | |
| USB Type | USB2.0 Type A |
| Operate System | Windows 7, Windows 8, Windows 10, Windows 11, Mac OS X, Linux, Android |
| Color System / Compression | YUY2 / H.264 / MJPEG |
| Video Format | YUY2 :MAX 1080P@5fps H.264 AVC: MAX 2160P@30fps MJPEG:MAX 2160P@30fps |
| Audio on USB | Supported |
| USB Video Communication Protocol | UVC 1.1~1.5 |
| UVC PTZ | Supported |
| Network Features | |
| Video Compression | H.264/MJPEG |
| Video Stream | First streaming, second streaming |
| Main Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576... |
| Sub Stream Resolution | 720x480, 320x240... |
| Video Bit Rate | 32kbps~51200kbps（Second Way：32kbps~20480kbps） |
| Bit Rate Type | Variable bit rate，Fixed bit rate |
| Frame Rate | 50Hz: 1fps~50fps, 60Hz:1fps~60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps,128Kbps |
| Support protocols | NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on |
| Input/Output Interface | |
| HD Output | 1xHDMI: 2.0 Video format：4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94/29.97fps； 720P@50/60/59.94fps Remarks：4KP60 HDMI output only supports YUV420 |
| 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424m standard. Video format：1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps; 720P@50/60fps |
|
| Network Interface | 1xRJ45: 10M/100M/1000M Adaptive Ethernet |
| Audio Interface | 1-ch , 3.5mm Audio Interface, Line In； |
| 1-ch , 3.5mm Audio Interface, Line Out； | |
| 1-ch，USB2.0, Type-A(Can be configured as Host or Device by software) | |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |
| 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | |
| RESTORE | Support |
| Power Jack | JEITA type (DC IN 12V) |
| Generic Specification | |
| Installation Direction | Mounting, Ceiling Mounting |
| Tally Lamp | 1PCS (Red and Green) |
| Power Indicator | 1PCS(Blue） |
| Status Indicator | 1PCS (Yellow) |
| IR Remote Control | Support |
| Dial | Support |
| Input Voltage | DC 12V /POE+ |
| Input Cur | 2A（MAX） |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Power Consumption | MAX 18W |
| Size | 169mm x 142mm x 175mm |
| Net Weight | About 1.5Kg |
